CE Component Sourcing ESP8266 ESP12f AI - Thinker Module Mit 32 MB Flash Memory

1. Operating Voltage: 3.3V

2. Operating Temperature:-40 - 85°C

3. CPU Tensilica L106

4. RAM:50KB(Available)

5. Flash:32Mbit

6. System

7. 802.11 b/g/n

8. IntegratedTensilica L106 ultra-low power 32-bitmicro MCU, with 16-bit RSIC.

9. The CPU clock speed is 80MHz. It can also reach a maximum value of 160MHz.

10.WIFI 2.4 GHz Support WPA/WPA2

11.Ultra-Small 18.6mm*15.0mm

12.Integrated10 bit high precision ADC

13.IntegratedTCP/IP Stack

14.IntegratedTR switch, balun,LNA, Power amplifier and matching network

15.Integrated PLL, Regulator and power source management components, +20 dBm output power in 802.11b mode

16.Supports antenna diversity

17.Deep sleep current < 20uA, Power down leakage current < 5uA

18.Rich interface on processor: SDIO 2.0, (H)SPI, UART, I2C, I2S, IRDA, PWM, GPIO

19.STBC, 1x1 MIMO, 2x1MIMO, A-MPDU & A-MSDU aggregation & 0.4s guard interval

20.Wake up ,build the connection and transmit packets in < 2ms

21.Standby power consumption<1.0mW (DTIM3)

22.Support AT remote upgrades and cloud OTA upgrade

23.Support STA/AP/STA+AP operation modes

24.FCC/CE/RoHs

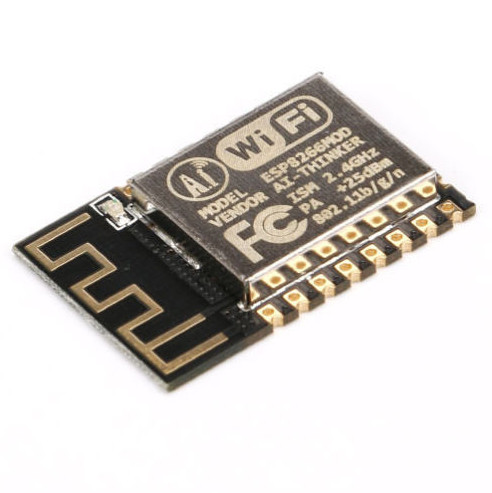

Module Pictures
